STIHL

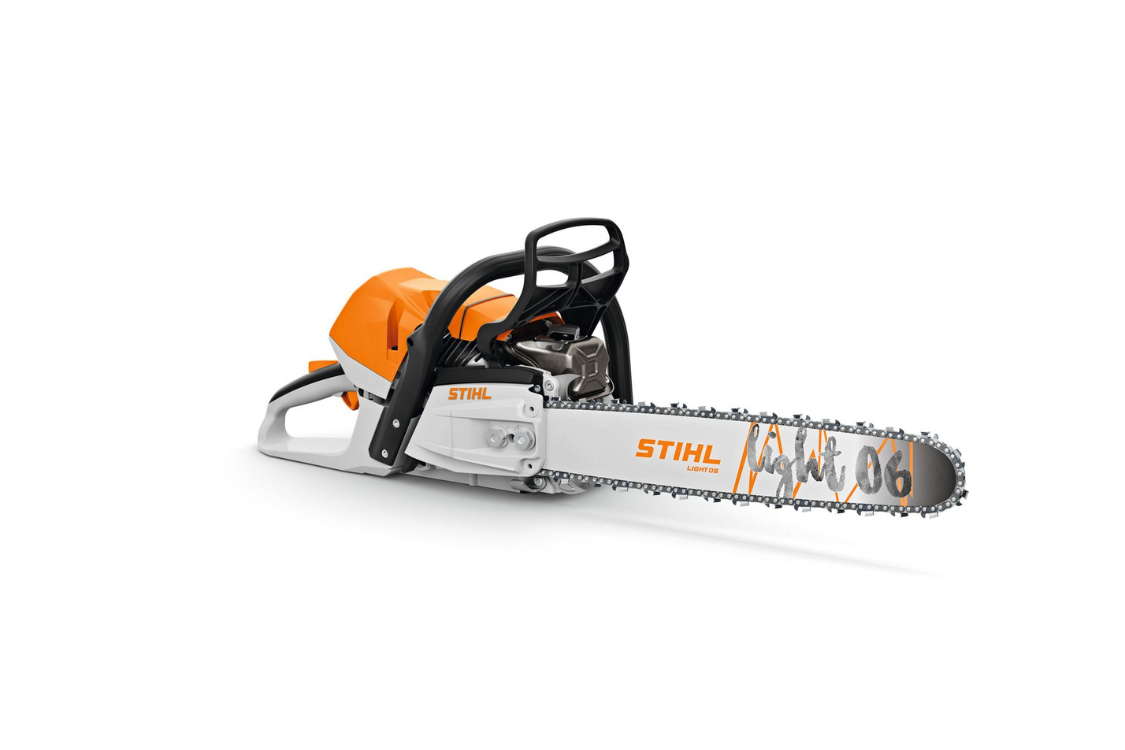

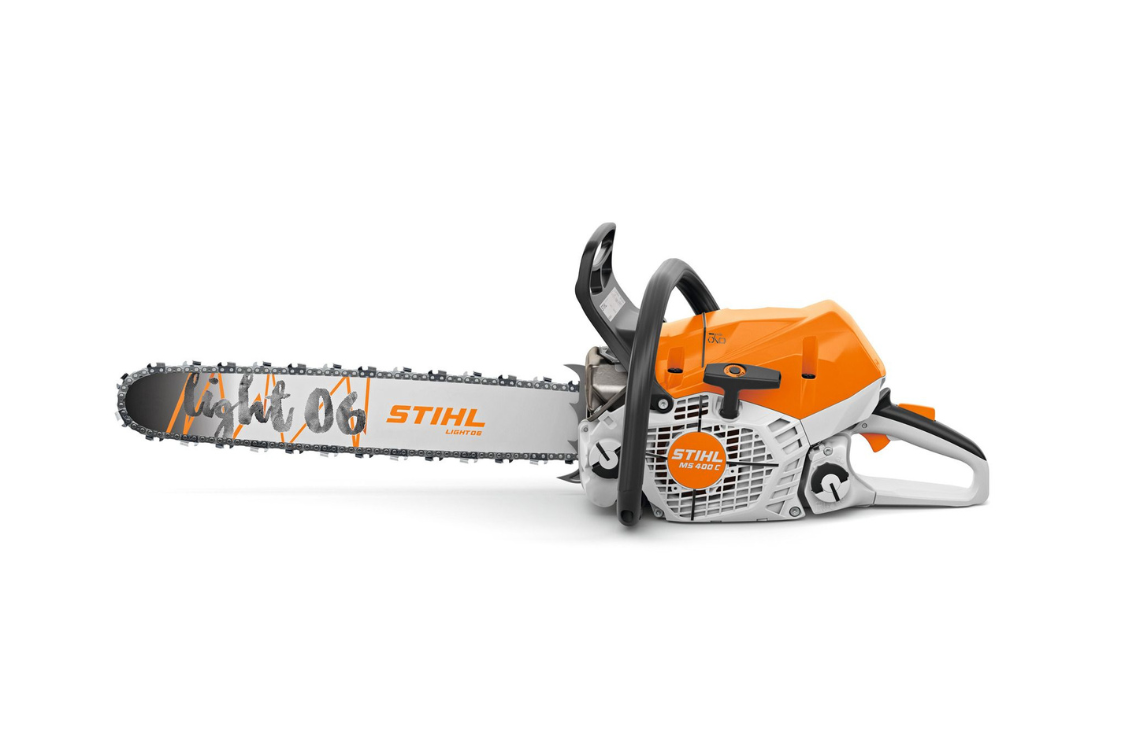

NEW MS 400.1CM CHAINSAW -20in BOM

NEW MS 400.1CM CHAINSAW -20in BOM

€1,350.00 EUR
€1,450.00 EUR €1,350.00 EUR
Sale Sold Out

Taxes included.

TECHNICAL DETAILS

Displacement 62.6 cm³
Power 3.90 kW
Engine power 5.30 HP
CO2 690 g/kWh
Device weight without refuelling 5.5 kg 1)
System weight without refuelling 6.77 / 6.50 / 6.63 kg 2)
Power-to-weight ratio 1.41 kg/kW
Bar length 50 / 40 / 45 cm 3)
Bar length 20 / 16 / 18 in 3)
Groove width 1.60 mm
Groove width 63 in
Saw chain pitch 3/8"
Device length with bumper spike 457 mm 1)
Sound pressure level 107 dB(A) 4)
Sound power level 116 dB(A) 4)
Vibration level, left 4.5 m/s² 5)
Vibration level, right 4.4 m/s² 5)



The MS 400.1 C-M petrol chainsaw sets new standards in the 60cc class and is a complete re-development of the MS 400 C-M, offering the best power-to-weight ratio of any saw available in the market. It has been designed for professionals and is best suited for felling, delimbing and preparing wood.

Weighing 5.5kg (300g lighter than the MS 400) and with a smaller engine displacement, it still maintains an impressive power output of 3.9 kW, which gives the best power-to-weight ratio of 60cc petrol chainsaws available. The MS 400.1 has 4.3 Nm of torque, which is an increase of 4.1 Nm of torque on the MS 400 – which means the chainsaw is less pressure sensitive when cutting large timber and is less likely to bog down during the cut. M-Tronic technology means the MS 400.1 is easy to start and has super-fast acceleration too.

Alongside engine improvements, a larger magnesium flywheel and improved muffle helps keep the saw cool during operation.  The geometry of the rear handle has been improved for more comfortable handling, and the profile of the end has been widened to rest securely on your leg, resulting in easier plunge cutting. This, combined with the new compact design, makes the MS 400.1 exceptionally easy to handle. The rib pattern on the underside of the chainsaw helps it glide along the trunk when snedding, preventing bark and twigs from getting caught. The new HD2 filter helps keep the saw running in tough conditions and cuts down on maintenance / downtime during the working day.

The petrol tank has a 50% marker which gives you a quick indication of the fuel level, helping you keep track of consumption. Access to the oil pump control bolt has been improved too, meaning you can adjust oil flow on the job using a combi-spanner.



View full details

Features

Side- Mounted Chain Tensioning

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

STIHL M-Tronic

RELIABLE WORK WITH THE BEST PERFORMANCE. With STIHL M-Tronic, you’ll have the best performance from your work tool from the outset. Fully electronic engine management regulates the ignition timing and fuel metering in all work situations, taking into account external conditions such as temperature, altitude and fuel quality.

Variable-Displacement Oil Pump

OIL CONSUMPTION BASED ON NEED. The controlled-delivery oil pump reduces your chainsaw’s oil consumption by up to 50%. To use it, simply select the E position. For very long cutting attachments or very dry wood, an additional oil volume can be set by the user.

Long-Life Air Filter Systems for Chainsaws

EXTENDED FILTER SERVICE LIFE. Pre-separation routing removes coarse, larger particles from the airstream before they can reach the actual filter. The HD2 filter keeps even fine dust away from the engine, ensuring a long engine service life, long cleaning intervals and easy maintenance of your chainsaw. When we refer to a long-life air filter system in chainsaws, this exclusively describes models that have pre-separation routing and an HD2 filter. With this system, you benefit from a significantly longer filter service life compared to conventional air filter systems.

HD2 Filter

INCREASES SERVICE LIFE. The HD2 filter protects your power tool’s engine against even the finest dust, ensuring a longer service life and reduced wear. The filter made from PET material has up to 70% finer pores than fleece and polyamide filters, and is also oil- and water-repellent. This also makes it easier to clean the filter. When needed, the filter cartridge can be easily replaced without tools.

Compensator

REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.

Tool-Free Fuel Cap for Oil and Fuel Tanks

QUICK AND EASY TO USE. With tool-free fuel cap, you can open and close oil and fuel tanks in just a few simple steps, thanks to a bayonet closure.

STIHL EMATIC System

REDUCES OIL CONSUMPTION. The STIHL Ematic system comprises a STIHL Ematic or Ematic S guide bar, a STIHL Oilomatic saw chain and a controlled-delivery oil pump. It ensures that the chain oil gets to where it is needed for lubrication. This allows you to reduce oil consumption by up to 50%. If you often work in dusty conditions or if you use long guide bars, you can quickly and easily increase the oil quantity at any time with the new oil pump system.

Carburettor Heating (V)

FOR RELIABLE OPERATION EVEN IN WINTER. Thanks to carburettor preheating, you can work reliably with your chainsaw even in winter. You can change the operation from summer to winter mode in just one simple step. In the winter setting, pre-heated intake air flows around the carburettor, preventing it from icing up.

Captive Nuts

PROTECTION AGAINST LOSS The nuts are attached to the sprocket cover in a captive manner. This makes it impossible for the nuts to fall off and get lost when the cover is removed.

Advanced Combustion Technology

FOR LOWER FUEL CONSUMPTION AND HIGH PERFORMANCE. Thanks to STIHL four-channel technology, you can work with your power tool with very low fuel consumption and high performance. The four overflow channels guide the fuel-and-air mixture into the cylinder in a targeted and more compressed manner, which optimally burns the fuel and significantly increases the performance of the engine.
